Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine:
PP meltblown nonwoven fabric making machine could produce the meltblown fabric which could achieve the standard more than BFE95-99.It could produce the width 600mm,800mm,1000mm,1200mm,1400mm,1600mm and the weight 25-40gsm or as your request.
Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine
1. Basic Introduction:
1.1Factory condition:
| Location | Indoors |
| Power supply | No dangerous area |
| Humidity | ≤65% |
| Temperature | 20-30℃ |
| Power | 3-Phase,380V,50Hz |
| Total installed capacity | 80KVA |
| Prodution line dimension | 10m*2m*3m |
1.2 Flow Chart:
Vacuum Loader→Extruder→Hydraulic screen changer→Metering gear pump →Mould→Cooling conveyor belt→Electrostatic electret device→Online slitting device→Winding device
2. PP Meltblown Nonwoven Fabric Making Machine Advantage:
Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine
1. Our machine design is mainly to produce BFE95&99 meltblown nonwoven fabric.
2. We adopt high quality T-die and spinneret,it is the core element for fabric filament quality,
because the spinneret hole is smaller,generally it is Φ0.2-0.3mm,if mould quality is bad,it is easier to be blocked,it is hard to produce high quality meltblown nonwoven fabric as well as increase the more time on cleaning the spinneret hole.
3. High quality hydraulic sreen changer and meter pump could supply stable pressure to T-die and it would help to produce uniform and even fabric.
4. Our meltblown fabric making machine is equipped with all the necesary machines like electrostatic electret device,heating oven,ultrasonic cleaning device and mixer.

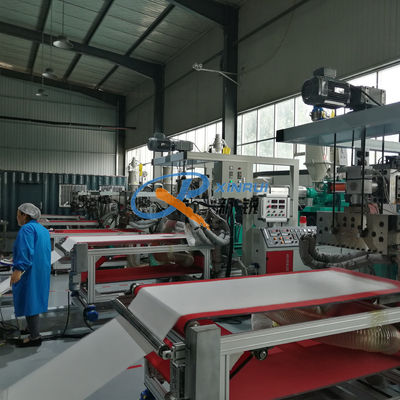

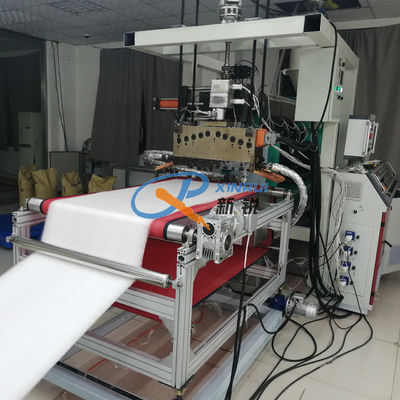

3. Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine Pictures:
